FEATURES
• On-demand supply 24/7
• Flow rate: 100 to 1350 mL/min
• Purity: +99.99996%
• Pressure: 11 barg (160 psig)
• Proprietary 100% titanium cell
technology
FOR CONTINUOUS EMISSION AND AIR MONITORING APPLICATIONS
The same features found in our laboratory gas generators are now available in industry standard 19” rack mount format – top quality, ultra safe, reliable, and
economical hydrogen generation in a convenient and compact package.
APPLICATIONS
• GC
• Analyzers
APPLICATIONS
• GC
• Analyzers
• Spectroscopy
• Unique permeation membrane drying system
• 2-year complete product warranty
• PC Monitoring
• Cascading
APPLICATIONS
• GC
• Analyzers
• Spectroscopy
IDEAL FOR ALL GC & GC/MS
CARRIER GAS AND DETECTOR GAS APPLICATIONS
The NM Plus Series hydrogen generators enhance the high performance of the PG Plus with the addition of a unique no maintenance purification system. This results in ultra high purity carrier grade gas. The intuitive software control and safety alarm capability maximize the benefits of using hydrogen carrier gas while minimizing the safety concerns.
FEATURES
• On-demand supply 24/7
• Flow rate: 100 to 600 mL/min
• Purity: +99.9996%
• Pressure: 11 barg (160 psig)
• Proprietary 100% titanium cell technology
IDEAL FOR ALL GC DETECTORS AND CARRIER GAS APPLICATIONS
This clever instrument combines the reliability of our hydrogen and zero air generators into one compact and convenient package. Available in both high purity PG Plus and ultra high purity NM Plus configurations, the FID station can be ordered in either of two different styles – flat
for placement under a GC, or the FID tower to conserve bench space. Available in a variety of H2 flow ranges up to 1 L/min and zero air flow rates up to 5 L/min
FEATURES
• 19” for rack mounting
• On-demand supply 24/7
• Flow rate: 100 to 1350 mL/min
• Purity: +99.9996% or
+99.99996%
• Pressure: 11 barg (160 psig)
• Zero air flow rates 1.8 or 5 L/min
• Zero air purity <0.1 ppm
• H2 and Zero Air in a single compact package
• 2-year complete product warranty
• Hydrogenation reactors
• Hydrogen fuel cells
• Unique cold dual dynamic
regeneration system
• 2-year complete product
warranty
• PC Monitoring
• Cascading

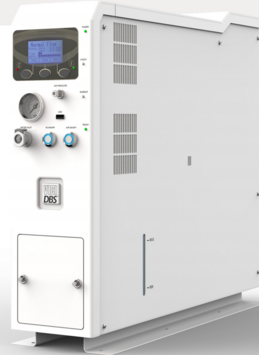

FID GAS STATION
HYDROGEN + ZERO AIR

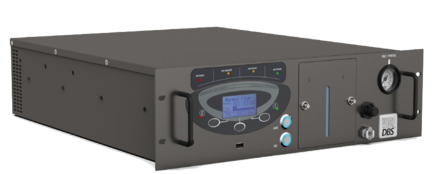

NM & PG PLUS RACK
HYDROGEN + ZERO AIR
• Other applications: CVD, UCP, high efficiency
process gas, weather balloon filling, eNOSE,
and 3-D chromatography
• H2 and Zero Air in a single compact package
• 2-year complete product warranty
• PC Monitoring
• Cascading
•Other applications: CVD, UCP, high efficiency process gas, weather balloon filling, eNOSE, 2-D & 3-D chromatography, hydrogenation reactors, hydrogen fuel cells
FEATURES
• On-demand supply 24/7
• Flow rate: 100 to 1350 mL/min
• Purity: +99.99996%
• Pressure: 11 barg (160 psig)
• Zero air flow rates 1.8 or 5 L/min
• Zero air purity <0.1 ppm
IDEAL FOR ALL GC DETECTOR APPLICATIONS
VICI DBS hydrogen generators offer a safe, economical and convenient alternative to gas cylinders.
The PG Plus Series provides superior performance with proprietary electrolytic cell technology
combined with high quality components and a unique hydrogen drying technology. Ideal for
use with gas chromatography detectors such as FID, NPD, and FPD.

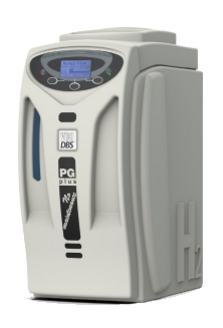

G PLUS SERIES
HYDROGEN GENERATOR
APPLICATIONS
• Analyzers
• On-board gas supply for mobile laboratories

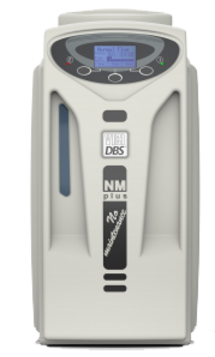

NM PLUS SERIES
HYDROGEN GENERATOR
T-STAR Technology Development Corporation
